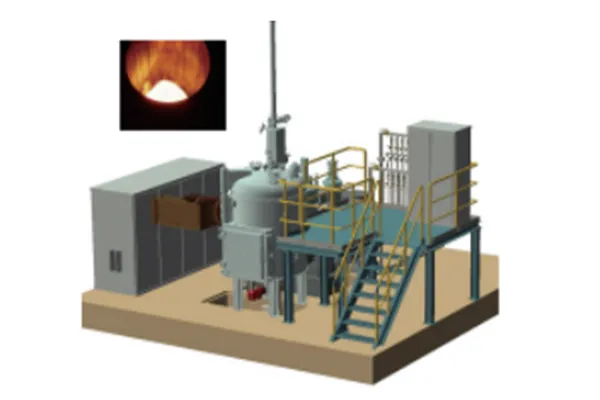

Water Cooled Copper Crucible Suspension Smelting Furnace

Our water cooled copper crucible suspension smelting furnace is an advanced vacuum refining system integrating high-temperature alloy melting, bottom pouring/tilting casting, and precision casting. The furnace utilizes a segmented water-cooled copper crucible as the base, where an intense electromagnetic field induced by the coil enables the metal to be melted in a semi-suspended or fully suspended state.

This technology ensures the high-purity smelting of high melting-point metals while eliminating contamination risks associated with traditional ceramic crucibles. It is ideal for processing active metals, high-purity materials, refractory alloys, semiconductor materials, and radioactive materials, ensuring a uniform metal structure and exceptional purity.

Request a Quote
Specifications
Crucible capacity 2KG 5KG 10KG 20KG 50KG
Furnace structure Horizontal Horizontal Vertical Vertical Vertical
Pouring method Tilt pouring Tilt pouring Tilt pouring Tilt pouring Tilt pouring
Max. temperature (℃) ≥2800 ≥2800 ≥2800 ≥2500 ≥2500
Ultimate vacuum level (Pa) ≤6×1×10⁻³ ≤6×1×10⁻³ ≤6×1×10⁻³ ≤6×1×10⁻³ ≤6×1×10⁻³
Pressure rise rate (Pa/min) ≤2 ≤2 ≤1.5 ≤1.5 ≤1.5
Heating power (kW) 200 250 300 400 450
Temperature measurement method Thermocouple + infrared temperature measurement
Other functions Secondary material feeding Secondary material feeding,centrifugal casting,mold insulation
Features
  • The strong suspension capability of the furnace allows for semi-suspended or fully suspended melting, ensuring optimal purity and uniformity of the metal materials.
  • The furnace supports high melting temperatures, making it suitable for high-melting-point materials while maintaining consistent temperature control throughout the process.
  • The water-cooled copper crucible design significantly extends the lifespan of the crucible, ensuring greater durability and longevity during high-temperature operations.
  • The system accommodates a wide range of specifications, providing flexibility to process various material types and production volumes efficiently.
  • The furnace ensures a contamination-free process by eliminating the risk of ceramic crucible contamination, ensuring high-purity results for sensitive and high-value materials.
