Vacuum Annealing Furnace

Annealing is a critical metal heat treatment process that involves slowly heating the metal to a specific temperature, maintaining it for a designated period, and then cooling it at a controlled rate. This process aims to:

Reduce hardness, improving machinability and cutting performance
Relieve residual stress, stabilizing dimensions and minimizing the risk of deformation and cracking
Refine Grain Structure: enhancing material uniformity and eliminating structural defects

Our vacuum annealing furnace is designed for precise annealing processes under vacuum or inert gas protection, ensuring high-quality surface finishes and enhanced material properties.

Request a Quote

Specifications

Horizontal Single Chamber
Vertical Single Chamber

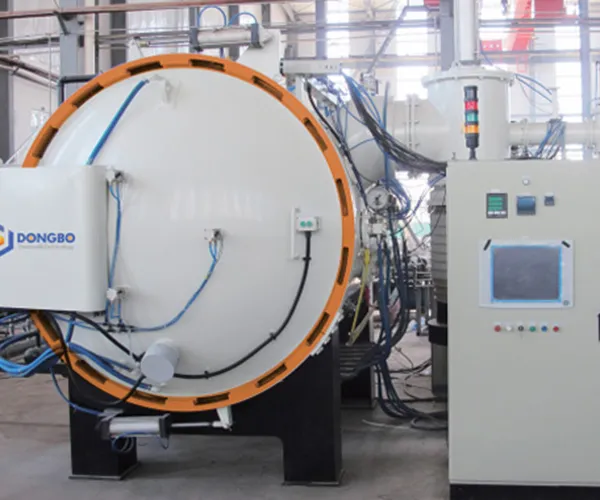

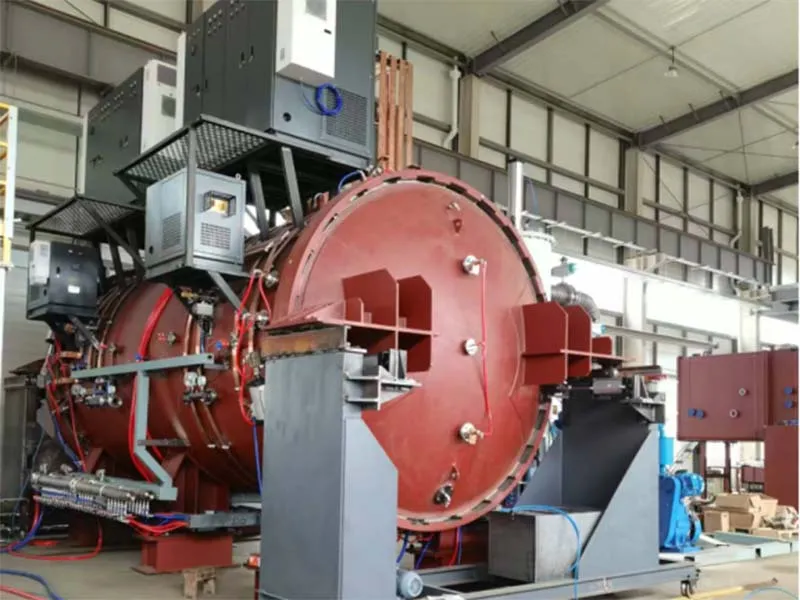

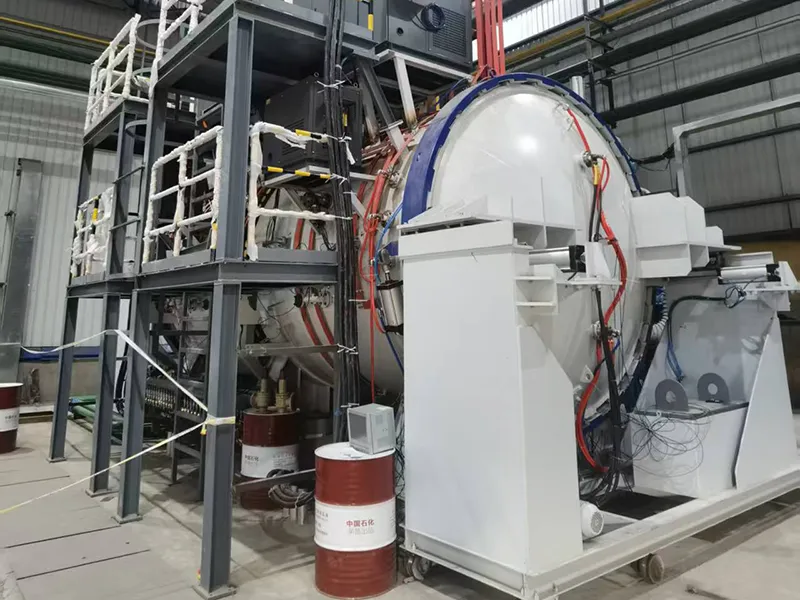

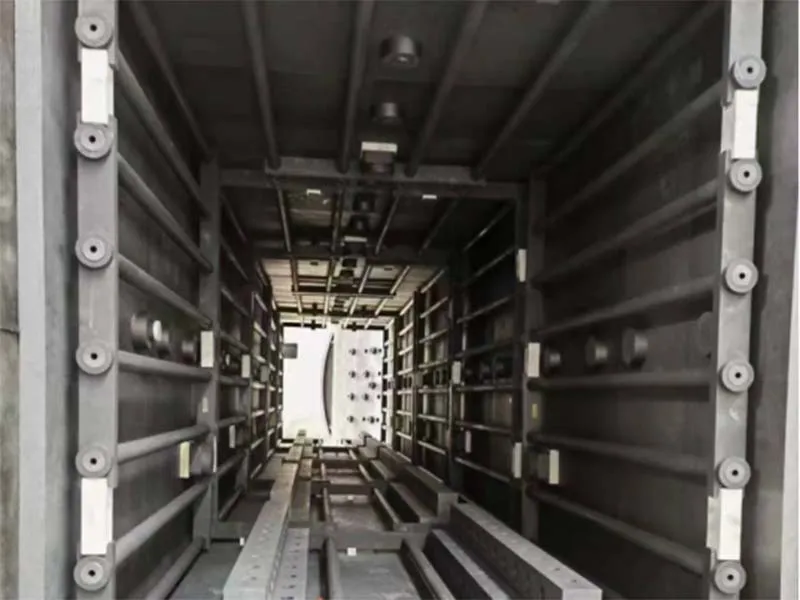

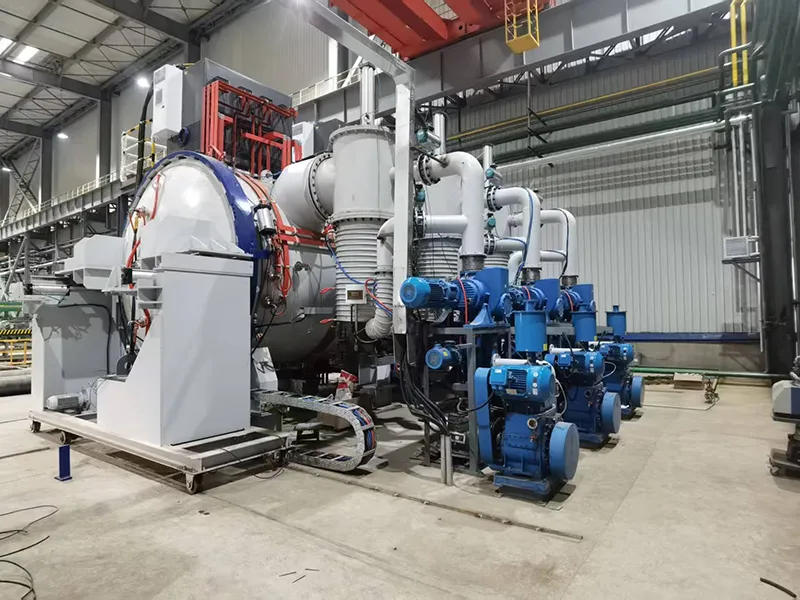

Horizontal Single Chamber Vacuum Annealing Furnace

Model	DB-SAF1666H	DB-SAF2077H	DB-SAF2588H	DB-SAF301111H	DB-SAF401414H
Effective internal dimensions (mm)	1600×600×600	2000×700×700	2500×800×800	3000×1100×1100	4000×1400×1400
Max. load capacity (kg)	800	1200	1500	3000	5000
Heating power (kW)	190/270	300/400	440/600	800/1000	1400/1800
Max. temperature (℃)	1200	1200	1200	1200	1200
Ultimate vacuum level (Pa)	4×10⁻³/4×10⁻⁴	4×10⁻³/4×10⁻⁴	4×10⁻³/4×10⁻⁴	4×10⁻³/4×10⁻⁴	4×10⁻³/4×10⁻⁴
Temperature uniformity (℃)	±5	±5	±5	±5	±5
Max. cooling gas pressure (bar)	1.99	1.99	1.99	1.99	1.99
Pressure rise rate (Pa/h)	0.5/0.27	0.5/0.27	0.5/0.27	0.5/0.27	0.5/0.27

The above specifications are for the standard horizontal single-chamber vacuum annealing furnace. We offer customized, non-standard designs and manufacturing to meet specific customer requirements. For specialized applications, our furnaces can achieve an ultimate vacuum level of 10⁻⁴ Pa or higher, with a pressure rise rate better than 0.1 Pa/h.

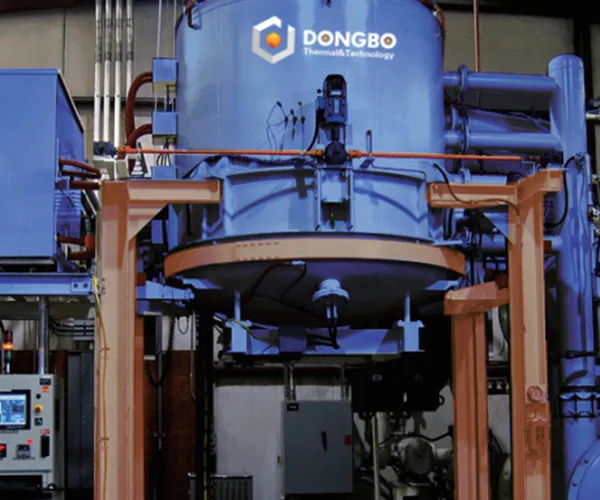

Vertical Single Chamber Vacuum Annealing Furnace

Model	DB-SAF0816V	DB-SAF1020V	DB-SAF1225V	DB-SAF1630V	DB-SAF2040V
Effective internal dimensions (mm)	800×1600	1000×2000	1200×2500	1600×3000	2000×4000
Max. load capacity (kg)	800	1200	1500	3000	5000
Heating power (kW)	180/260	300/400	440/600	800/1000	1400/1800
Max. temperature (℃)	1200	1200	1200	1200	1200
Ultimate vacuum level (Pa)	4×10⁻³/4×10⁻⁴	4×10⁻³/4×10⁻⁴	4×10⁻³/4×10⁻⁴	4×10⁻³/4×10⁻⁴	4×10⁻³/4×10⁻⁴
Temperature uniformity (℃)	±5	±5	±5	±5	±5
Max. cooling gas pressure (bar)	1.99	1.99	1.99	1.99	1.99
Pressure rise rate (Pa/h)	0.5/0.27	0.5/0.27	0.5/0.27	0.5/0.27	0.5/0.27

The above specifications are for the standard vertical single-chamber vacuum annealing furnace. We offer customized, non-standard designs and manufacturing to meet specific customer requirements. For specialized applications, our furnaces can achieve an ultimate vacuum level of 10⁻⁴ Pa or higher, with a pressure rise rate better than 0.1 Pa/h.

Process Control

The vacuum annealing furnace operates under vacuum or inert gas protection, effectively preventing surface oxidation and rusting during the annealing process. This ensures higher processing quality, consistent material properties, and long-lasting durability for treated components.
