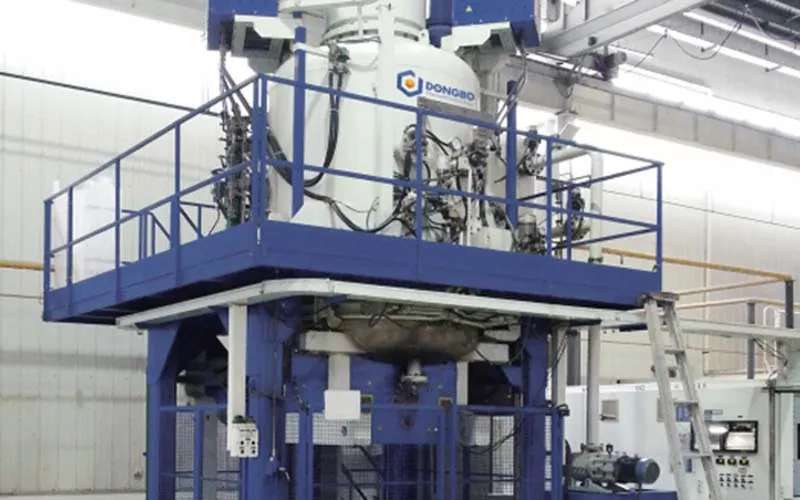

Vertical Single Chamber Vacuum Metallizing Furnace (Aluminizing)
  • Vacuum Metallizing Furnace
    Vertical Single Chamber Vacuum Metallizing Furnace (Aluminizing)
  • Vacuum Metallizing Furnace

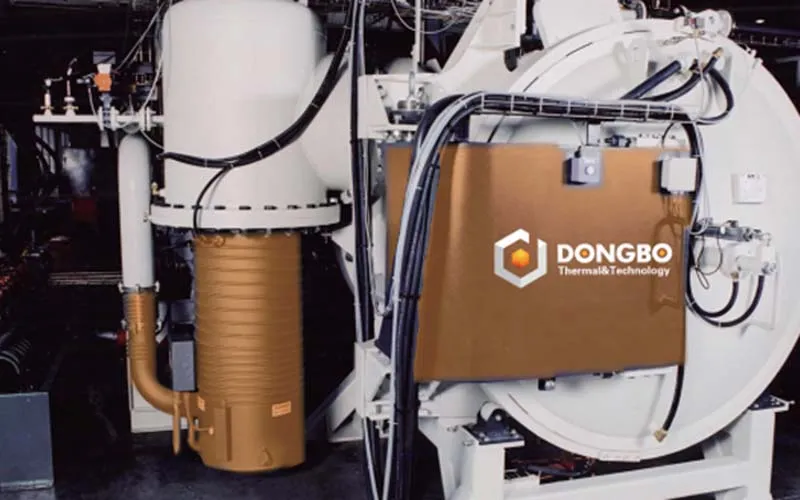

    Horizontal Single Chamber Vacuum Metallizing Furnace (Aluminizing)
  • Vacuum Metallizing Furnace

    • Vacuum Heat Treatment Furnace

    Vacuum Metallizing Furnace

    Our vacuum metallizing furnace is designed to enhance the corrosion resistance of metal components by infusing metal elements into their surfaces through aluminizing and heat treatment technologies. This process targets metal molecules of specific sizes, ensuring that only those capable of penetrating the workpiece surface are integrated, resulting in a durable and corrosion-resistant layer.

    The metallizing process is conducted under vacuum or inert gas protection in a fully automated system, ensuring precision, consistency, and high-quality surface treatment comparable to conventional metallizing equipment.

    Request a Quote
    Specifications
    Model DB-SAI644H DB-SAI755H DB-SAI966H DB-SAI1266H DB-SAI1299H
    Effective internal dimensions (mm) 600×400×400 700×500×500 900×600×600 1200×600×600 1200×900×900
    Max. load capacity (kg) 200 300 500 800 1200
    Heating power (kW) 65/90 85/120 120/160 160/210 260/360
    Max. temperature (℃) 1320 1320 1320 1320 1320
    Ultimate vacuum level (Pa) 4×10⁻¹/4×10⁻⁴ 4×10⁻¹/4×10⁻⁴ 4×10⁻¹/4×10⁻⁴ 4×10⁻¹/4×10⁻⁴ 4×10⁻¹/4×10⁻⁴
    Temperature uniformity (℃) ±5 ±5 ±5 ±5 ±5
    Max. cooling gas pressure (bar) 1.99 1.99 1.99 1.99 1.99
    Pressure rise rate (Pa/h) 0.5/0.27 0.5/0.27 0.5/0.27 0.5/0.27 0.5/0.27

    The above parameters are for the standard horizontal single-chamber aluminizing vacuum furnace. We can provide customized, non-standard designs and manufacturing to meet specific customer requirements, such as achieving an ultimate vacuum level of 10⁻⁴ Pa or higher and a pressure rise rate better than 0.1 Pa/h.
