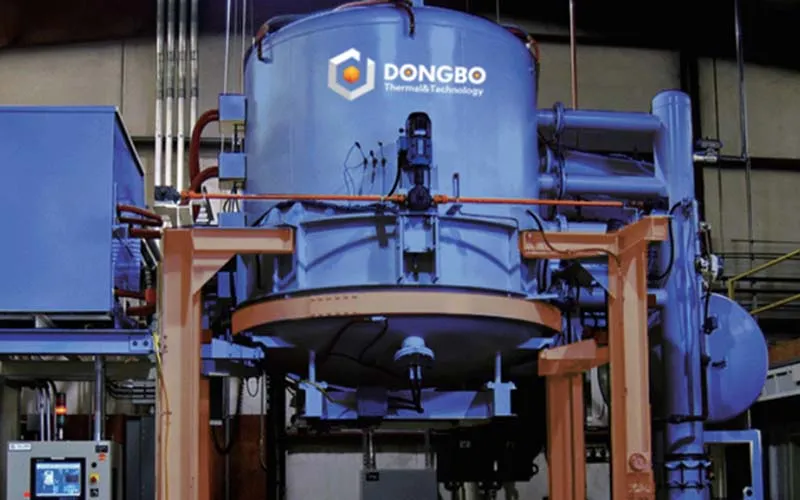

Vertical Single Chamber Air-Cooled Vacuum Hydrogen Furnace
  • Vacuum Hydrogen Furnace
    Vertical Single Chamber Air-Cooled Vacuum Hydrogen Furnace
  • Vacuum Hydrogen Furnace

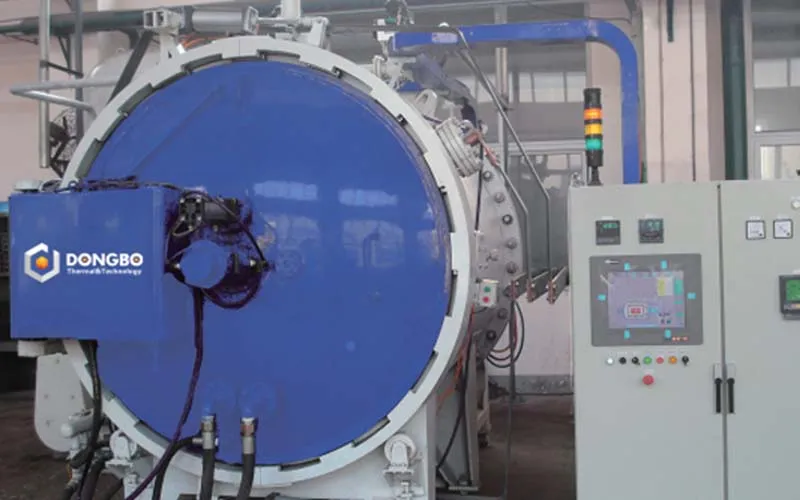

    Horizontal Single Chamber Air-Cooled Vacuum Hydrogen Furnace
  • Vacuum Hydrogen Furnace
    Horizontal Double Chamber Air-Cooled Vacuum Hydrogen Furnace

    • Vacuum Heat Treatment Furnace

    Vacuum Hydrogen Furnace

    The vacuum hydrogen furnace is used for heat treatment processes such as vacuum high-temperature brazing, vacuum aging, hydrogen reduction, and vacuum sintering of various materials, including high-speed steel, high-alloy tool steels, carburizing steel, precision bearings, oil pump and nozzle components, and precision machinery parts. It is also suitable for hydrogen-charged sintering heat treatment of non-ferrous metals and magnetic materials, ensuring high-purity heat treatment and optimal material performance.

    Request a Quote
    Specifications
    Model DB-SHG644H DB-SHG755H DB-SHG966H DB-SHG1266H DB-SHG1299H
    Effective internal dimensions (mm) 600×400×400 700×500×500 900×600×600 1200×600×600 1200×900×900
    Max. load capacity (kg) 200 300 500 800 1200
    Heating power (kW) 65/90 85/120 120/160 160/210 240/300
    Max. temperature (℃) 1320 1320 1320 1320 1320
    Ultimate vacuum level (Pa) 4×10⁻¹/4×10⁻⁴ 4×10⁻¹/4×10⁻⁴ 4×10⁻¹/4×10⁻⁴ 4×10⁻¹/4×10⁻⁴ 4×10⁻¹/4×10⁻⁴
    Temperature uniformity (℃) ±5 ±5 ±5 ±5 ±5
    Max. cooling gas pressure (bar) 1.99 1.99 1.99 1.99 1.99
    Pressure rise rate (Pa/h) 0.5/0.27 0.5/0.27 0.5/0.27 0.5/0.27 0.5/0.27

    The above parameters are for the standard vacuum dehydroxylation hydrogen furnace. We can provide customized, non-standard designs and manufacturing to meet specific customer requirements, such as achieving an ultimate vacuum level of 10⁻⁴ Pa or higher and a pressure rise rate better than 0.1 Pa/h.

    Vacuum Hydrogen Furnace
    Process Control

    The furnace incorporates proprietary process control technologies, including pulse hydrogen charging under negative pressure, which optimizes gas usage while maintaining safety, and dynamic constant-pressure hydrogen charging under negative pressure, ensuring consistent process stability during reduction, brazing, sintering, and aging. These advanced methods not only help to reduce energy consumption but also enhance operational safety and process precision, making the system highly reliable for complex industrial applications.
